proclister.h File Reference

#include <glib.h>
#include <proc/readproc.h>
#include <proc/sysinfo.h>

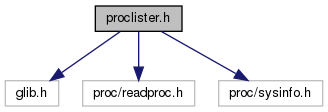

Include dependency graph for proclister.h:

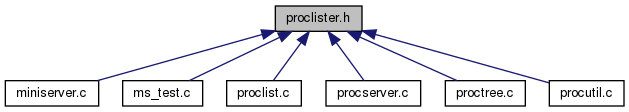

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	pstree
struct	action
struct	miniserver
struct	request
struct	response

Macros
#define	WITH_SYSTEMD
#define	PROC_FLAGS_DEFAULT   PROC_FILLMEM | PROC_FILLCOM | PROC_FILLUSR | PROC_FILLSTATUS | PROC_FILLSTAT
#define	proc_stime_ux(p)   (getbtime() + p->start_time / Hertz)
#define	proc_chn_init(p)   ((p)->sd_uunit = NULL)

Typedefs
typedef struct pstree	pstree
typedef struct miniserver	miniserver
typedef struct request	request
typedef struct response	response
typedef struct action	action
typedef int(*	webhandler) (request *req, response *res)

Functions
proc_t *	proc_tree (void)
	Populate a tree of (proc_t) processes. More...
void	ptree_dump (proc_t *p, int lvl)
	Dump process tree to STDOUT. More...
GSList *	par_get_ch (proc_t *p)
	Get a list of direct child processes of parent process. More...
void	par_add_child (proc_t *par, proc_t *ch)
	Add a child process to a parent. More...
json_t *	proc_to_json (proc_t *proc, char *cmdline)
	Populate Process node into (Jansson) JSON Object. More...
json_t *	ptree_json (proc_t *p, int lvl)
	Convert process tree to JSON. More...
json_t *	proc_list_json2 (int flags)
	Create Process list JSON. More...
void	ptree_free (proc_t *p, int lvl)
	Free/Release the tree of processes. More...
int	proc_kill (int pid)
	Kill process by sending SIGKILL signal to it. More...
miniserver *	server_new (json_t *json)
	App: Instantiate server with basic settings (e.g. More...
void	server_actions_load (miniserver *s, action *actarr, int cnt)
	App: Load actions from C Array of actions. More...
void	server_run (miniserver *s)
	App: Start Running Server and accepting requests. More...
action *	action_find (miniserver *s, const char *url)
	Lookup an action (during dispatching). More...

Macro Definition Documentation

proc_chn_init

#define proc_chn_init

(

p

)

((p)->sd_uunit = NULL)

Referenced by proc_list_json2(), proc_tree(), and ptree_free().

PROC_FLAGS_DEFAULT

#define PROC_FLAGS_DEFAULT   PROC_FILLMEM | PROC_FILLCOM | PROC_FILLUSR | PROC_FILLSTATUS | PROC_FILLSTAT

Referenced by proc_list_json(), proc_list_json2(), and proc_tree().

proc_stime_ux

#define proc_stime_ux

(

p

)

(getbtime() + p->start_time / Hertz)

Referenced by proc_st_iso(), and proc_to_json().

WITH_SYSTEMD

#define WITH_SYSTEMD

Typedef Documentation

action

typedef struct action action

miniserver

typedef struct miniserver miniserver

pstree

typedef struct pstree pstree

request

typedef struct request request

response

typedef struct response response

webhandler

typedef int(* webhandler) (request *req, response *res)

Function Documentation

action_find()

action* action_find	(	miniserver *	s,
		const char *	url
	)

Lookup an action (during dispatching).

Parameters

s	- Server
url	- URL by which action node should be looked up

Returns

Action node matched or NULL for no action matching passed URL.

References miniserver::actions, and action::url.

Referenced by main(), and ms_answer_to_connection().

par_add_child()

void par_add_child	(	proc_t *	par,
		proc_t *	ch
	)

Add a child process to a parent.

Child is added to an "abused" (not meant for this purpose) struct member (however still a pointer member "lxcname") of the process structure. Facilitates appropriate casts to allow smooth operation and easy use.

Parameters

par	- Parent
ch	- Child

Referenced by proc_tree().

par_get_ch()

GSList* par_get_ch

(

proc_t *

p

)

Get a list of direct child processes of parent process.

Parameters

p	- Parent process whose direct children are being accessed

Returns

- List of children

Referenced by ptree_dump(), ptree_free(), and ptree_json().

proc_kill()

int proc_kill

(

int

pid

)

Kill process by sending SIGKILL signal to it.

See also man 7 signal and man 2 kill.

Parameters

pid	- PID of individual process (>= 1)

Returns

0 for process being killed successfully, 1 and up for errors

Referenced by answer_to_connection0().

proc_list_json2()

json_t* proc_list_json2

(

int

flags

)

Create Process list JSON.

Serialization is done using Jansson JSON library by building AoO and serializing it. The linear list of processes can be built using single stack based process entry buffer.

Parameters

flags

- Flags for openproc() (See man openproc)

Returns

JSON array of (process) objects as jansson library data structure (has to be freed by caller)

References IS_KTHREAD, main(), proc_chn_init, PROC_FLAGS_DEFAULT, proc_list_json2(), proc_to_json(), proc_tree(), ptree_free(), and ptree_json().

Referenced by answer_to_connection0(), and proc_list_json2().

proc_to_json()

json_t* proc_to_json	(	proc_t *	proc,
		char *	cmdline
	)

Populate Process node into (Jansson) JSON Object.

Can be used to populate processes in linear list or tree formats.

Parameters

proc	- Process
cmdline	- Buffer to serialize (approximate) command line with arguments into.

Todo:

See https://groups.google.com/g/jansson-users/c/xD8QLQF3ex8 and the need to use json_object_set_new()

References list2str(), and proc_stime_ux.

Referenced by proc_list_json2(), and ptree_json().

proc_tree()

proc_t* proc_tree

(

void

)

Populate a tree of (proc_t) processes.

Because of intricate linkages of process tree - and not wanting them broken or incomplete - we do not support partial or filtered process trees (although the implementation contains some bulletproofing for this).

Returns

Root process node of the tree.

References g_slist_free(), main(), par_add_child(), proc_chn_init, PROC_FLAGS_DEFAULT, and ptree_dump().

Referenced by answer_to_connection0(), and proc_list_json2().

ptree_dump()

void ptree_dump	(	proc_t *	p,
		int	lvl
	)

Dump process tree to STDOUT.

Parameters

p	- Root process of the tree
lvl	- Level in the process tree (Intial caller should pass 0)

Returns

None

References gsleader(), leadstr, par_get_ch(), and proc_st_iso().

Referenced by proc_tree().

ptree_free()

void ptree_free	(	proc_t *	p,
		int	lvl
	)

Free/Release the tree of processes.

Release custom used (OLD:lxcname) "sd_uunit" member (GSList *) and mark it unallocated (NULL) to not accidentally free it wrongly (or leak memory).

Parameters

p	- Root process
lvl	- Recursion level (explicit caller should pass 0)

Returns

None

References freeproc(), g_slist_free(), par_get_ch(), and proc_chn_init.

Referenced by answer_to_connection0(), and proc_list_json2().

ptree_json()

json_t* ptree_json	(	proc_t *	p,
		int	lvl
	)

Convert process tree to JSON.

Parameters

p	- Root process node of the tree (linux kernel, pid=0)
lvl	- Recursion level (explicit caller should pass 0)

Returns

Jansson JSON root node

References par_get_ch(), and proc_to_json().

Referenced by answer_to_connection0(), and proc_list_json2().

server_actions_load()

void server_actions_load	(	miniserver *	s,
		action *	actarr,
		int	cnt
	)

App: Load actions from C Array of actions.

Parameters

s	- Miniserver (to/for which actions will be loaded)
actarr	- Array of actions (not action pointers) to add
cnt	- Number of actions to add

Returns

none

References miniserver::actions, and action::url.

Referenced by main().

server_new()

miniserver* server_new

(

json_t *

json

)

App: Instantiate server with basic settings (e.g.

docroot, port).

• docroot
• port
• JSON indent/prettiness

References miniserver::debug, miniserver::docroot, docroot, miniserver::logfh, miniserver::logfname, miniserver::port, and miniserver::reqdebug.

Referenced by main().

server_run()

void server_run

(

miniserver *

s

)

App: Start Running Server and accepting requests.

Parameters

s

- Server

Returns

None

References ms_answer_to_connection(), ms_on_client_connect(), ms_req_term_cb(), and miniserver::port.

Referenced by main().
