Transform a linear process list into a process tree. More...

#include <stdio.h>
#include <glib.h>
#include <time.h>
#include <jansson.h>
#include "proclister.h"

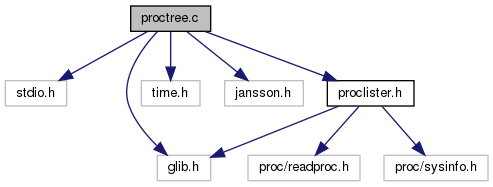

Include dependency graph for proctree.c:

Functions
void	free_data (gpointer data)

void	key_free (void *k)

void	val_free (void *v)
	Merely show hastable iteration. More...

proc_t *	proc_tree (void)
	Populate a tree of (proc_t) processes. More...

void	proc_htab_free (GHashTable *ht)

Detailed Description

Transform a linear process list into a process tree.

Dependencies

On Ubuntu / Debian:

sudo apt-get install libprocps6 libprocps-dev libglib2.0-dev libjansson4 libjansson-dev

Glib and jansson references

https://stackoverflow.com/questions/42295821/using-int-as-key-in-g-hash-table
https://stackoverflow.com/questions/16868077/glib-hash-table-lookup-failure
https://developer.ibm.com/tutorials/l-glib/
https://jansson.readthedocs.io/en/2.8/conformance.html
https://stackoverflow.com/questions/50226252/what-is-the-proper-way-of-free-memory-in-creating-json-request-from-jansson-liba
https://stackoverflow.com/questions/37018004/json-decref-not-freeing-memory
https://groups.google.com/g/jansson-users/c/xD8QLQF3ex8 - jansson author Petri Lehtinen discussing building and easy to free (autofree) jansson data structure by using ..._new() versions of functions.

Compiling

gcc `pkg-config --cflags glib-2.0` foo.c `pkg-config --libs glib-2.0`
gcc foo.c `pkg-config --cflags --libs glib-2.0`


gcc -o proc proc.c -I/usr/include/glib-2.0 -lprocps  `pkg-config --cflags --libs glib-2.0`

Special flags for passing extras to openproc()

PROC_PID - Pass an array of PIDS (0-terminated piudlist) as 2nd arg (pid_t* pidlist)
PROC_UID - Pass (after PID:s) many UID:s followed by number of them.

See struct proc_t

less /usr/include/proc/readproc.h Notes on start_time: Ubuntu 18.04: start_time; // stat start time of process – seconds since 1-1-70 Gitlab (2021): start_time;// stat start time of process – seconds since system boot

Function Documentation

◆ free_data()

void free_data ( gpointer data )

◆ key_free()

void key_free ( void * k )

◆ proc_htab_free()

void proc_htab_free ( GHashTable * ht )

◆ proc_tree()

proc_t* proc_tree ( void )

Populate a tree of (proc_t) processes.

Because of intricate linkages of process tree - and not wanting them broken or incomplete - we do not support partial or filtered process trees (although the implementation contains some bulletproofing for this).

Returns: Root process node of the tree.

References g_slist_free(), main(), par_add_child(), proc_chn_init, PROC_FLAGS_DEFAULT, and ptree_dump().

Referenced by answer_to_connection0(), and proc_list_json2().

◆ val_free()

void val_free ( void * v )

Merely show hastable iteration.

Intent is not to free this way as the process nodes are still used within tree structure (Hashtable was only a temporary index to assist in building of the tree).
